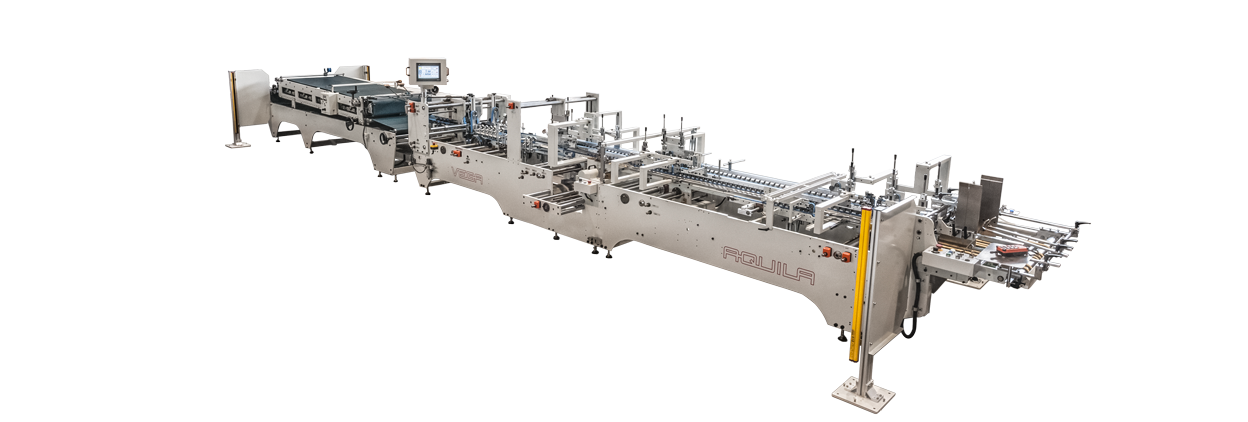

AQUILA is

a folder gluer for solid and light corrugated cardboard designed to face the different gluing needs shown in our box book.

It is the ideal machine for those establishing their first plant and for those who, immediately or over time, want to enrich the set of additional modules and special accessories.

ITALIAN DESIGN, CHINESE PRODUCTION

Modular and flexible, Aquila is available in 3 sizes (62, 82 e 102 cm) and it is produced in China according to the Project and knowhow of Vega’s Engineers.

DOWNLOAD BROCHURE

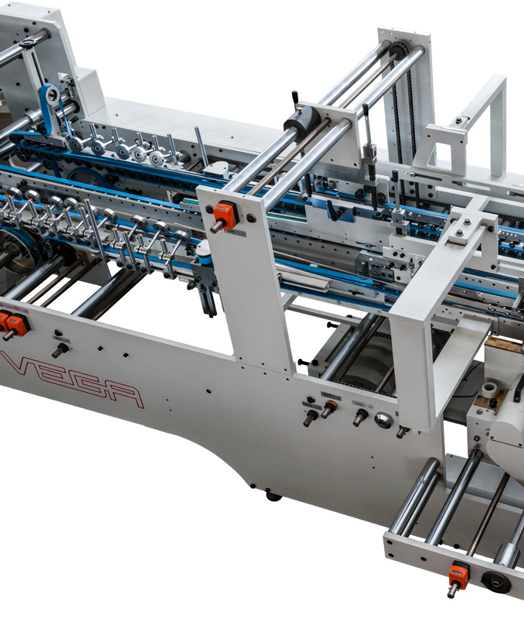

INTRODUCTION

Feeder with high grip belts, mechanical and electromechanical vibration with optional suction. Motor with potentiometer for adjusting the pitch between boxes.

MBA

Blank alignment module (optional Mechanical Blank Alignment) for easier machine set-up and ideal left or right alignment of the blank.

BRAILLE

Patented solution for Braille embossing in line (optional) with 4 or 5 rows of dots. Multiple embossing wheels can be mounted to impress braille on multiple box flaps and in principle on all box flaps.

GLUING UNIT

Lower left gluing unit with gluing wheels of variable thickness for gluing the entire glue flap. Removable pot for washing and adjustable glue scrapers to vary the amount of glue on the wheel. Quality control systems can be inserted to monitor the amount of glue applied on the box. Glue gun support for glue distribution systems from the top with interlocked plug for the insertion of an optional spray glue dispensing system with quality control.

CLOSING SECTION

Section with three conveyors with motorised and variable-speed upper folding belts to improve closing accuracy. Manually removable central transport for small formats and longitudinally movable. Pair of crushing rollers for closing creases to improve gluing tightness.

OUTPUT AND PRESSING SECTION

Transfer section to the motorised pressure belt. Two overhead belts transport the blank under the variable and reversible pneumatic pressure station. An electropneumatic and spray counting system counts the processed boxes. An additional box-squaring system helps the correct gluing of crash lock bottom boxes before pressure belt. A touch control station allows the control of machine functions, together with a radio frequency remote control.
