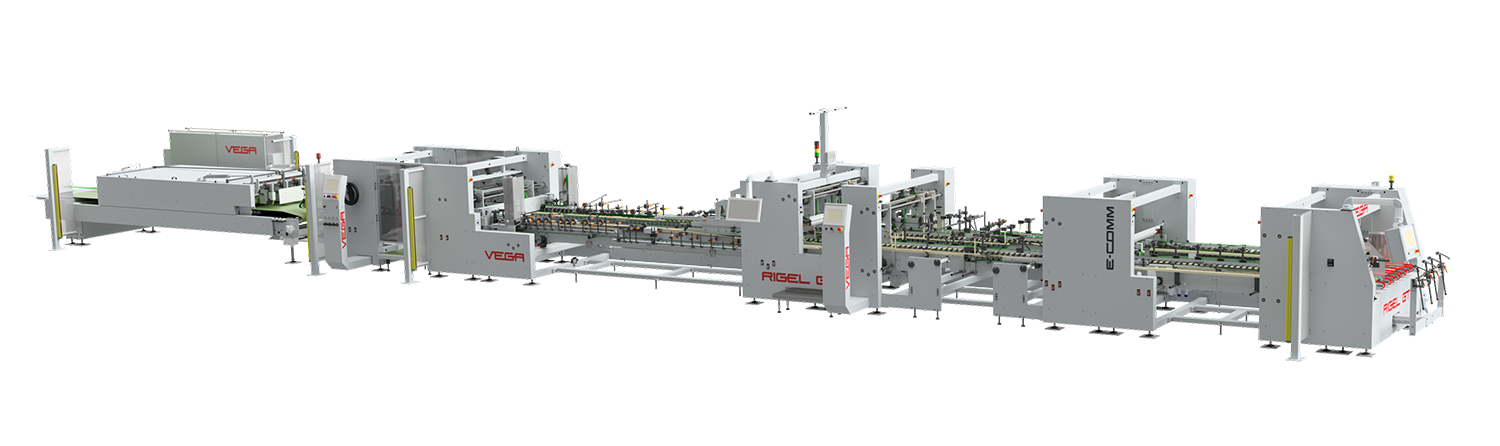

RIGEL is

a high-performance Folder Gluer in any production scenario, in terms of output and box change-over time.

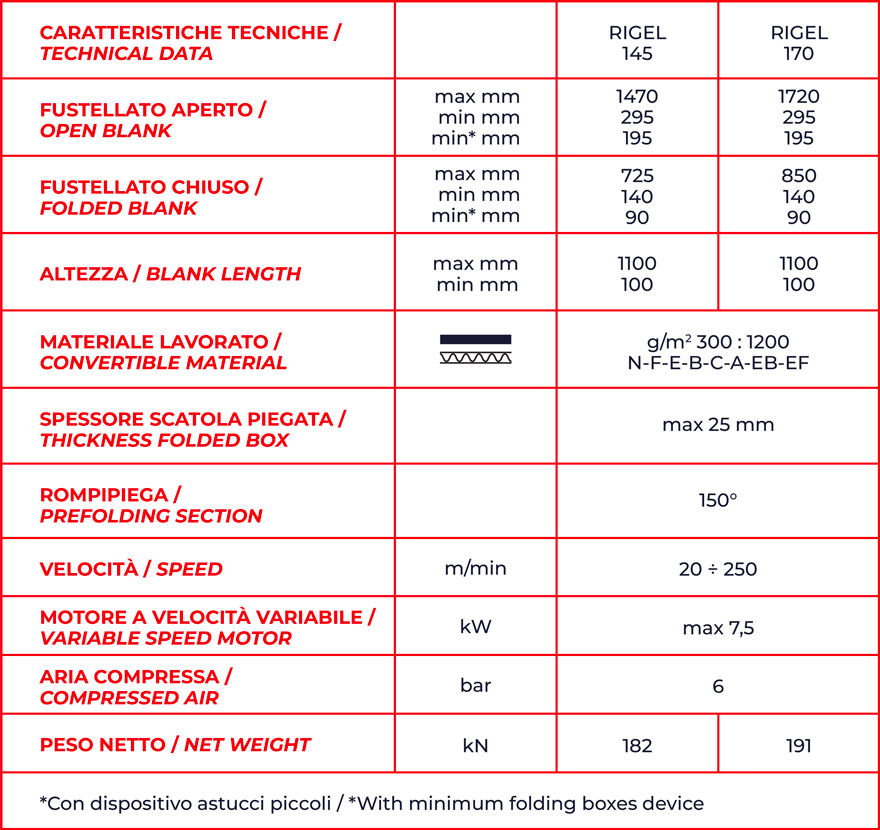

Positioned in the high market segment, Vega RIGEL was born motorized in the conveyors and it is available in two sizes 145 and 170 to meet the different production needs of the solid board market (300-1200 g / m²) and corrugated cardboard market up to the EB flute.

AUTONOMY AND EFFICIENCY

RIGEL has been designed to achieve the best combination of quality and performance in the processing of the blank: the approach to the machine is intuitive and, through the VIS2 system (second generation Vega Integrated System), which comes as standard on the whole range of products, electronics assist the start-up process by automatically setting up the machine to box gluing and visually walk the operator step by step on the operations to be performed.
Born with Industry 4.0, the machine exchanges production data with our company’s ERPs, to maximise its integration into the production process.

DOWNLOAD BROCHURE

INTRODUCTION

Feeder with banks of independently motorised vacuum belts. “Smart Feeding" functions to introducing blank with special shapes. Touch button to setting the feeding and running parameters.

MBA

Blank alignment module (optional Mechanical Blank Alignment) for easier machine set-up and ideal left or right alignment of the blank in case of high-grip introduction belts.

E-COMMERCE MODULE

Optional passing section of e-commerce boxes equipped with enslavement for the application of adhesive tapes.

FOLDING MODULE

Section with three motorised conveyors for folding front and back flaps of crash lock bottom or 4/6 corners boxes.

GLUING SECTION

A pneumatic bridge supports the glue group from the top of the machine. The bridge and all gun supports can be computerised to reduce set up times.

CLOSING SECTION

Three-conveyors section with independently motorised upper folding belts with a pair of built-in creasers. Containment leather belt and centre conveyor longitudinally displaceable. Lateral squaring unit and suction group are optional.

EXTRACTION MODULE

It is possible to eject the single blank from the line by extraction belts, for machines equipped with quality control.

OUTPUT AND PRESSING SECTION

Transfer section to the motorised pressure belt. Two overhead belts transport the blank under the pneumatic pressure section. An electropneumatic and spray counting system counts the processed boxes. An additional pneumatic frontal squaring system helps the correct gluing of crash lock bottom boxes before and at the pressure belt. A touch control station allows the control of machine functions, together with a radio frequency remote control. The entire section can be computerised to minimise changeover times.
